Multi-Scenario Adaptation: Eneroc Engineering Machinery Battery Solutions
In the electrification of engineering machinery, battery system performance, reliability, and total lifecycle cost constitute key evaluation criteria. Eneroc has introduced Standard Containerized Batteries, Heavy-Duty Truck Battery Systems, and Mining Truck and other Customized Engineering Machinery Battery Systems aligned with diverse application scenarios and vehicle model requirements, thereby establishing a comprehensive battery product portfolio spanning multiple use environments. This article aims to systematically expound the technical rationale and core strengths of this product series.
I. Foundation: Core Performance Assurance Delivered by CATL Battery Cells
Eneroc Engineering Machinery Battery Systems employ CATL Lithium Iron Phosphate (LFP) battery cells, providing a robust foundation of superior performance and safety.
1） High Safety and Longevity: The LFP material system inherently offers excellent thermal stability. The battery cells are equipped with high-precision explosion-proof valves and a high-strength PACK grouping design, meeting the GBT31467.3 high Safety standards. The battery cells have a long cycle life, and the product can operate stably for an extended period.
2） Excellent consistency: Leveraging CATL’s highly automated production equipment ensures a high degree of performance uniformity among battery cells, providing an inherent advantage for capacity and internal resistance balancing after battery pack assembly, thereby enhancing system usable capacity and lifespan.
3） Stable output platform: Featuring low internal resistance and a high discharge rate, the battery is capable of delivering stable, continuous power output to meet the transient high-load requirements of construction machinery.

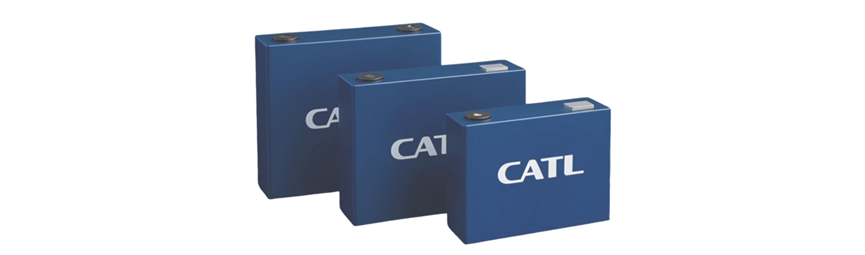

Figure 1. CATL Battery Cell
II. Standard Containerized Battery
The Standard Containerized Battery is a modular design platform whose core advantage lies in enabling flexible and cost-efficient configurations through standardization.
1. Design Principles:
1） Case Standardization: Offers multiple standard-sized battery containers, including the C Container (L1060×W630×H240) and the G Container (L950×W630×H240), to accommodate diverse spatial layout requirements.
2） Flexible Assembly: The platform supports various CATL battery cell capacities such as 173Ah, 228Ah, and 302Ah. By varying the number of battery cells connected in series within each container and configuring containers in series and parallel arrangements (supporting multi-string configurations), the system achieves a wide energy capacity range from approximately 90kWh to nearly 600kWh, catering to different vehicle models and operational scenarios.

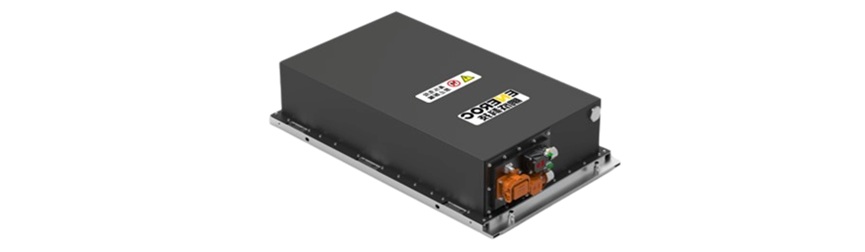

Figure 2. Eneroc Standard Containerized Battery
2. General Technical Advantages:
1） Strong Compatibility: The Standard Containerized Battery integrates liquid cooling pipelines, compatible with both liquid cooling and natural cooling solutions, fulfilling diverse vehicular application requirements.
2） Wide Temperature Range Adaptability: Equipped with heating and cooling systems as well as insulation, supporting an operational temperature range from-35°C to 65°C, suitable for deployment across various climatic regions.
3） High Protection Level: The battery system features an IP68 protection rating, enabling operation in diverse harsh environmental conditions.
Meeting the power distribution requirements for various buses, trucks, and other vehicle types, we provide customers with customizable and scalable Battery Solutions.
3. Scenario-based Solution One: Heavy Truck Battery System
To address heavy trucks' characteristics high power, long life, and strict management requirements, Eneroc has developed a dedicated Heavy Truck Battery System.
1. Core Features:
1） High capacity and density combined with long Cycle Life: utilizing 324Ah high-capacity Battery Cells (upgradable to 340Ah) to build a high-capacity system, the system’s gravimetric Energy Density reaches 160-165Wh/kg. Battery Cells offer an extended Cycle Life, with room temperature cycle life reaching ≥8000 cycles (@70% SOH).

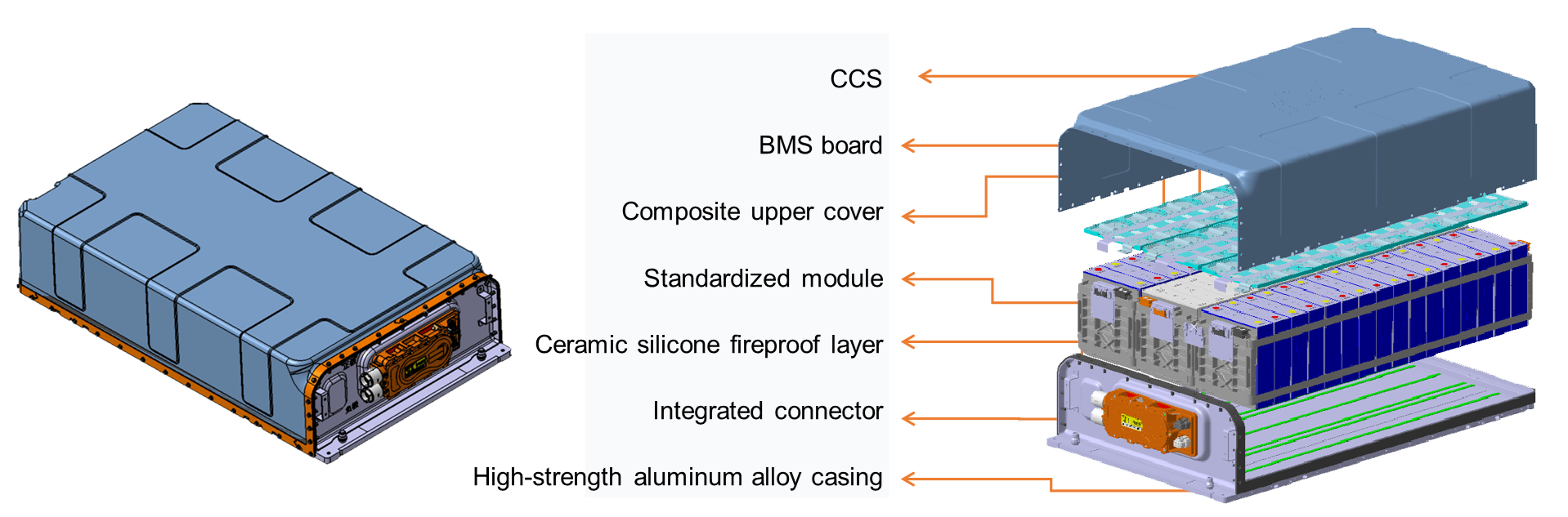

Figure 3. Eneroc Heavy Truck Battery System
2） Featuring Next-Generation Battery Management System:
a) Cascade Distributed Design: A flexible cascade distributed architecture fully compatible with and supportive of high-voltage battery systems up to 1500V, meeting the demands of large-scale energy storage and high-voltage applications.
b) Ultra-High Precision Management: Voltage acquisition accuracy of ±1mV with synchronous acquisition of all battery cell data completed within 1ms, providing a high-quality, real-time data foundation for AI-based precise battery state prediction and health management.
c) High Functional Safety: Designed to meet SIL-3 (IEC 61508) and ASIL D (ISO 26262) functional safety levels, with a single battery cell dual-ADC acquisition architecture ensuring operational safety and data reliability in high-voltage, high-capacity systems.
d) Flexible configuration: The system is designed based on standardized battery cells, allowing rapid configuration of different system capacities from 200kWh to 800kWh and beyond through series and parallel connections to meet various range requirements.
Figure 4. Eneroc Battery Management System
4. Scenario Solution II: Mining Truck/ Other Customized Construction Machinery Battery Systems
In response to extreme harsh environments such as mines and construction sites, this system imposes stringent requirements on the battery’s mechanical strength, heat dissipation, and protection level, with targeted reinforcement design and validation.
1. Extreme Environment Reliability Design:
1) Exceptional mechanical durability: Structural design is based on vibration intensity simulation and fatigue analysis referencing 4 times the GB/T 38031 standard. Simulation results indicate the system’s first-order frequency is high, well separated from common vibration excitations, and the basic structure is robust. The fatigue life meets rigorous operational requirements.

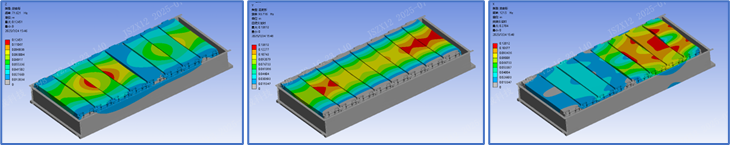

Figure 5. System vibration intensity simulation
2) Efficient thermal management validation: Based on detailed thermal simulations (including single pack and system-level simulations), the liquid cooling channel design is optimized. Single pack thermal simulation Under simulated high heat generation conditions (battery cell 39W), the system’s maximum temperature is controlled at 49.5°C, with a temperature rise of 14.5°C, ensuring thermal safety under sustained high-power operation.

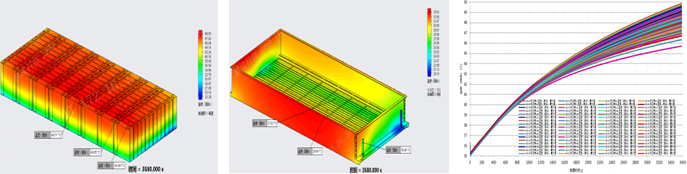

Figure. 6 Single-package Thermal Simulation
3) Ultra-long system lifespan: At the system level, featuring 4500 cycles (capacity degradation ≤30%) service life, which lowers the user’s Total Cost of Ownership.
2. Diverse adaptation solutions:
To meet the installation space, power, and voltage requirements of various mining trucks and construction machinery, Eneroc offers a series of battery system solutions. For example, the AD series provides multiple standard enclosure sizes (D02-D06), supporting both 750V and 1000V voltage platforms. The system capacity can be flexibly configured between 100kWh and 750kWh to accommodate equipment of varying tonnage and power.
5. Summary
Eneroc offers systematic battery solutions tailored to various application scenarios in the construction machinery sector. The Standard Module Battery enables flexible configuration through Modular Design, while the Heavy Truck Battery System emphasizes high capacity and intelligent management; Mining Truck and Construction Machinery Battery Systems enhance mechanical reliability and thermal management to withstand extreme operating conditions. Eneroc products uphold the design philosophy of high Safety, long lifespan, and exceptional reliability. Through thorough design simulation and validation, they are dedicated to delivering robust and sustainable power support for the electrification transformation of Construction Machinery.
