0.5P/215 kWh Liquid-cooled Energy Storage Integrated Cabinet

Security

Reliability

Smart Management

Multi‑Layer Safety

Real-time fire detection, pack-level precision protection.
Supports usage via mobile apps and the web, featuring cloud storage and data analytics.
Supports application scenarios such as peak shaving and valley filling, and demand management.

Real-time fire detection, pack-level precision protection.
Supports usage via mobile apps and the web, featuring cloud storage and data analytics.
Supports application scenarios such as peak shaving and valley filling, and demand management.

Real-time fire detection, pack-level precision protection.
Supports usage via mobile apps and the web, featuring cloud storage and data analytics.
Supports application scenarios such as peak shaving and valley filling, and demand management.

Real-time fire detection, pack-level precision protection.
Supports usage via mobile apps and the web, featuring cloud storage and data analytics.
Supports application scenarios such as peak shaving and valley filling, and demand management.

Download

PRODUCT SPECIFICATIONS

Battery Pack Parameters

Item	Patameters
Cell Type	LFP 280Ah
Configuration	1P48S
Nominal Voltage (Vdc)	153.6
Nominal Energy (kWh)	43.008
Power Rate (Cp)	≤0.5

Battery Rack Parameters

Item	Patameters
Pack Qty.	5S
Working Voltage (Vdc)	672~864
Nominal Voltage (Vdc)	768
Nominal Energy (kWh)	215.04
Power Rate (Cp)	≤0.5

AC System Parameters

Item	Patameters
Nominal Power-AC Side (kW)	100
Max Power-AC Side (kW)	110
Working Voltage (Vac)	On-grid mode：400V(-20%～+15%) Off-grid mode：AC400V±3%
Frequency (Hz)	50/60
Power factor	-0.99～+0.99
Total harmonic distortion rate of current	≤3%(full load)
AC Access Method	3-Phase, 4-Wire
Cooling method	Forced air cooling
Isolation methods	None

General Parameters

Item	Patameters
Dimension（WDH,mm）	1000×1350×2450
Weight (t)	＜3
Working Temperature (℃)	-30~55
Relative Humidity (%RH)	0~95%RH
Altitude (m)	≤3000
Cooling Method	Liquid cooling
IP Rating	IP54
Communication	Wireless 4G/Ethernet
Wiring Method	Bottom in and bottom out
Fire Protection	Pack-grade perfluorohexanone, with provision for water-based fire suppression system.

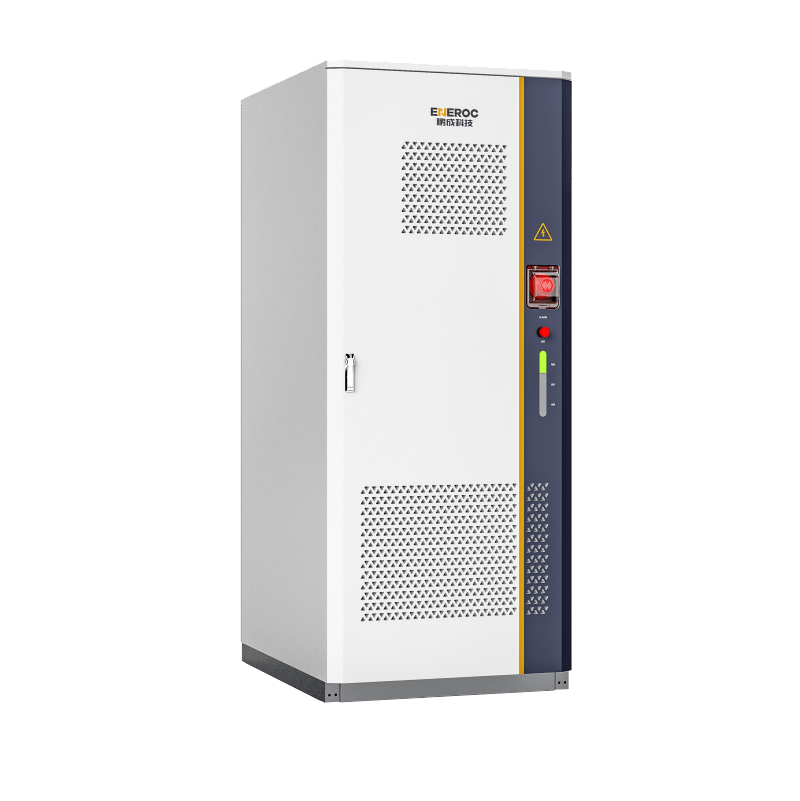

LIQUID-COOLED ENERGY STORAGE INTEGRATED CABINET

All-In-One Energy Storage Cabinet

Security

The system features battery-level fire suppression, a reserved water fire suppression interface, and continuous fire monitoring to ensure safe operation.

Real-time fire detection & multi-layer protection

Reliability

Using high-quality LFP cells from leading manufacturers, combined with liquid cooling and IP54 enclosure, it delivers stable performance in harsh environments.

Premium cells with intelligent thermal management
