PC6445
Nominal Voltage
64.4V
Nominal Capacity
45Ah
PC7690
High Security
5-Year Warranty
Ultra-Long Lifespan
Low Temperature Adaptability
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
PRODUCT SPECIFICATIONS
| Battery Model | PC7690 |
|---|---|
| Cell Type | LFP |
| Battery Cell Brand | CATL |
| Voltage Range | 60~87.6V |
| Nominal Voltage | 77.28V |
| Nominal Capacity | 90Ah |
| Energy | 6.955kWh |
| Applicable Vehicle Models | 72 V Electric Motorcycle / Electric Three-Wheeler |
| Dimension | 565*355*204mm |
| Weight | 55kg |
| IP Protection Rating | IP67 |
| Charging Voltage Limit | 87.6V |
| Maximum Charging Current | 15A |
| Maximum Discharging Current | 120A |
| Charging Temperature | -15~55℃ |
| Discharging Temperature | -20℃~60℃ |
| Storage Temperature | -25℃ to 45℃ (for less than 3 months) 25℃ (for more than 3 months) |
| Total Voltage Overvoltage Protection | Included |
| Total Voltage Undervoltage Protection | Included |
| Cell Overvoltage Protection | Included |
| Cell Under-voltage Protection | Included |
| Overcurrent Protection | Included |
| Short Circuit Protection | Included |
| Overtemperature Protection | Included |
| Charging Low-temperature Protection | Included |
| External Instrument | Optional |
| Communication Method | Bluetooth + RS485 |

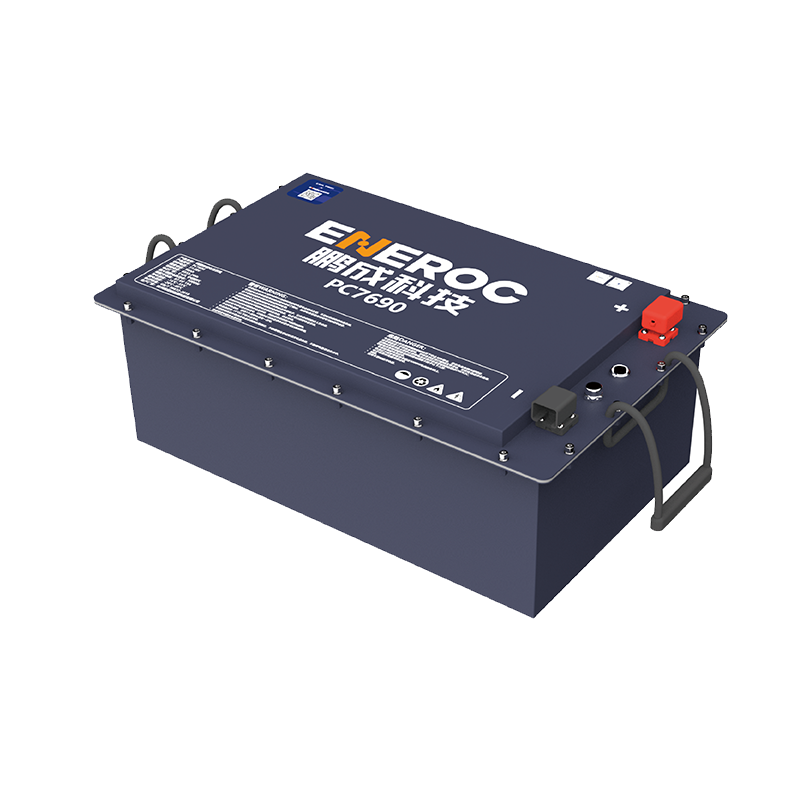

LIGHT VEHICLE LITHIUM-ION BATTERY
High-Energy Lithium Battery Solution For Light Electric Vehicles
High Security
Using automotive-grade LFP cells, these batteries remain non flammable and non explosive even at high temperatures, ensuring the safety of both personnel and equipment.
Safe from the source with non-flammable cells
Ultra-Long Lifespan
With a cycle life exceeding 2,000 times, a single investment delivers long term economic benefits by significantly reducing replacement and maintenance expenses.
Over 2,000 cycles to lower total life cycle costs
Low-Temperature Adaptability
Even in harsh cold conditions, the battery discharges reliably at -20°C and can be safely charged at -15°C, making it ideal for demanding working environments.
Stable discharge at -20°C and safe charge at -15°C
Five-Year Warranty
Backed by our confidence in quality, this extended warranty provides you with worry free after sales service and long term protection.
Industry leading 5 year extended warranty for peace of mind
