PC6445
Nominal Voltage
64.4V
Nominal Capacity
45Ah
PC6445H
High Security
Three-Year Warranty
Ultra-Long Lifespan
Low Temperature Adaptability
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
- Cycle life exceeding 2,000 cycles.
- Multiple layers of protection; fully visible and controllable.
- Exceptional adaptability across the full temperature range—stable and consistent in both extreme heat and bitter cold.
PRODUCT SPECIFICATIONS
| Battery Cell Model | PC6445H |
|---|---|
| Battery Cell Type | LFP |
| Battery Brand | CATL |
| Voltage Range | 50~73V |
| Nominal Voltage | 64.4V |
| Nominal Capacity | 45Ah |
| Energy | 2898Wh |
| Battery Pack Dimensions | 229*180*341mm |
| Total Battery Weight | 22kg |
| IP Protection Rating | IP65 |
| Maximum Compatible Motor Power | 2000W |
| Compatible Charger Current | 15A |
| Compatible Charger Voltage | 73V |
| Charging Method | CC-CV (Blind Charging) |
| Charging Temperature Range | -15℃~55℃ |
| Standard Discharge Current | 45A |
| Maximum Continuous Discharge Current | 80A 30S |
| Discharge Temperature Range | -20℃~60℃ |
| Storage Temperature (<3 months) | -25℃~45℃ |
| Storage Temperature (>3 months) | 25℃ |
| Storage State of Charge (SOC) | 60%~70% |
| Storage Environment | Dry and ventilated, remote from heat sources |
| System Overvoltage Protection | Included |
| System Undervoltage Protection | Included |
| Cell Overvoltage Protection | Included |
| Cell Undervoltage Protection | Included |
| Overcurrent Protection | Included |
| Short-Circuit Protection | Included |
| Overtemperature Protection | Included |
| Charging Low-Temperature Protection | Included |
| External Meter Function | Included |
| Sleep Strategy | 72h @SOC≥20% 8h @SOC<20% Charging Completion System Power-down |
| Bluetooth | Standard Configuration |
| 4G+GPS | Standard Configuration,4G Handle |

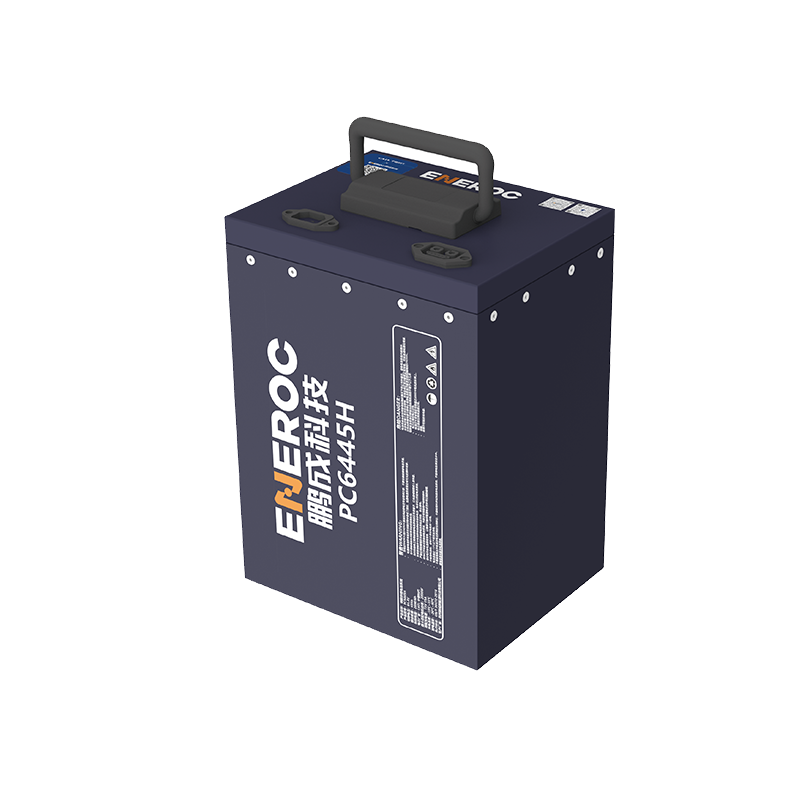

LIGHT VEHICLE LITHIUM-ION BATTERY
High-Energy Lithium Battery Solution For Light Electric Vehicles
High Security
Using automotive-grade LFP cells, these batteries remain non flammable and non explosive even at high temperatures, ensuring the safety of both personnel and equipment.
Safe from the source with non-flammable cells
Ultra-Long Lifespan
With a cycle life exceeding 2,000 times, a single investment delivers long term economic benefits by significantly reducing replacement and maintenance expenses.
Over 2,000 cycles to lower total life cycle costs
Low-Temperature Adaptability
Even in harsh cold conditions, the battery discharges reliably at -20°C and can be safely charged at -15°C, making it ideal for demanding working environments.
Stable discharge at -20°C and safe charge at -15°C
Three-Year Warranty
Backed by our confidence in quality, this extended warranty provides you with worry free after sales service and long term protection.
Industry leading 3 year extended warranty for peace of mind
